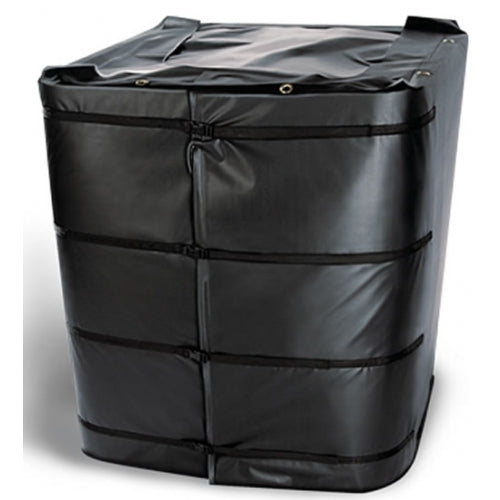

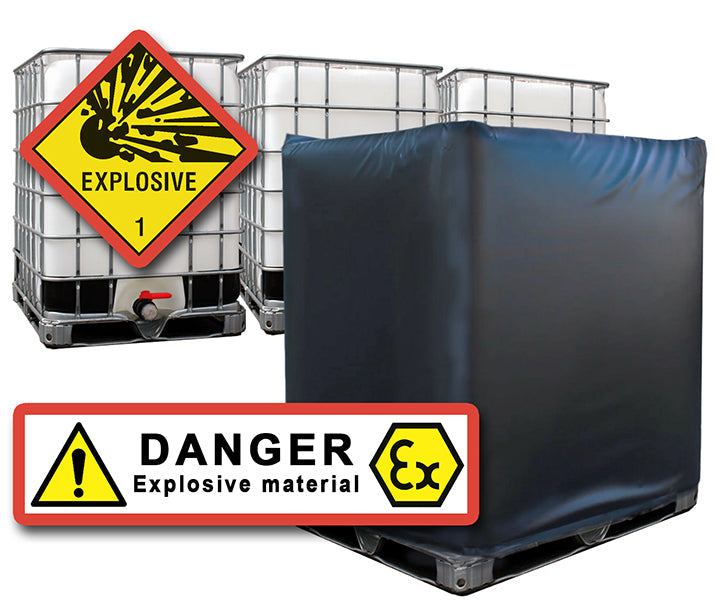

Explosion-Proof 275 Gallon IBC Tote Heater w/Top Lid Cover - 120V, C1D2T4 Rated, Model CBTH275-C1D2T4
$4,645.00Intrinsically Safe, Explosion-Proof 275 Gallon IBC Tote Heater. Certified C1D2T4 for Safe and Effective Tote Heating in Hazardous Areas.
| Dimensions | 48"L x 40"W x 46"H - Fits Larger & Smaller 275 Gallon Totes |
| Heat Range | Mid |
| Watts | 1440W |
| Volts | 120V |
| Availability | In Stock |
Intrinsically Safe, Explosion-Proof 275 Gallon IBC Tote Heater. Certified C1D2T4 for Safe and Effective Tote Heating in Hazardous Areas.
(CBTH275-C1D2T4) - Custom 275 Gallon IBC Tote Heater Certified for a Class 1 Division 2 Hazardous location. Our hazardous location products are listed for use in Class 1 Division 2; Groups A, B, C & D Hazardous Environments with a maximum Temperature Classification of T4. This design is engineered for a 275 gallon IBC tote w/ container dimensions of 48" L x 40" W x 46" H.
FEATURES & BENEFITS
Power Density: Extreme Freeze Protection -40°F
External Cord Length: 33 ft (can be shorten upon customer request)
Temperature Control: Internal fixed preset thermostat
Vinyl Type: D15 Black Vinyl (cold-crack rated to -20°F)
Approximate Wattage: 1440 Watts
Approximate Amperage: 12 Amps
Voltage: 120V
Certified by ETL to UL, CE, CSA Safety Standards

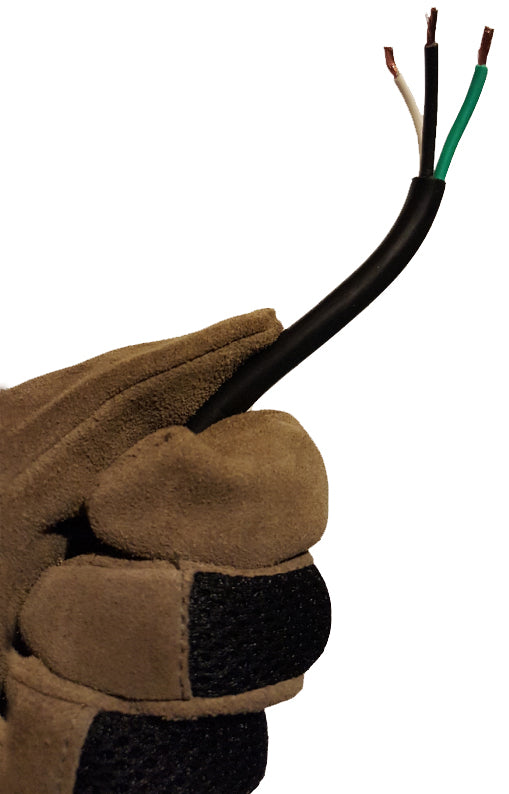

Power Plug: All C1D2 certified Powerblanket heaters will come with open leads
Temperature Classification:
This classification identifies the minimum ignition temperature threshold for the hazardous area. In other words, in order for the explosive or combustible environment to ignite, it would need to be subjected to a temperature in excess of this value. The values applied to this classification run from T1 to T6. A classification of T4 means the minimum ignition temperature is >135° C [275° F].
|
Temp Classification/ Rating |
Min Ignition Temperature °C (°F) |
Max Surface Temp |
| T1 | >450 [842] | 450 [842] |
| T2 | >300 [572] | 300 [572] |
| T3 | >200 [392] | 200 [392] |
| T4 | >135 [275] | 135 [275] |
| T5 | >100 [212] | 100 [212] |
| T6 | >85 [185] | 85 [185] |
This item includes: Buckles & straps used for fastening the custom heated Powerblanket snug against the IBC tote... providing optimal thermal contact and increased performance.
1-2 week lead time depending on quantity needed.
1 Year Manufacturers Warranty
Stop messing with hazardous heating belts and immersion heaters. Wrap it in a Certified C1D2 Tote Heater from Heat Authority and take the hassle out of heating your temperature sensitive tote materials. Explosion-Proof safety certified C1D2T4.
